Descripcion

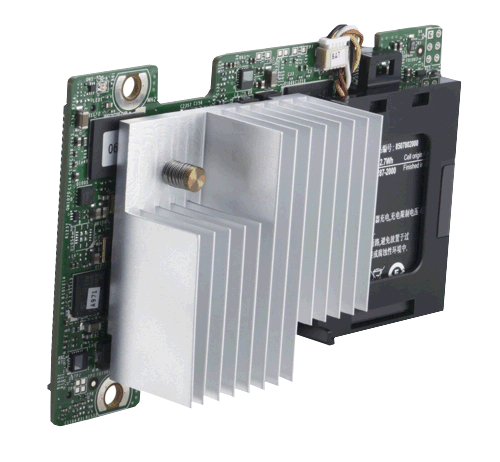

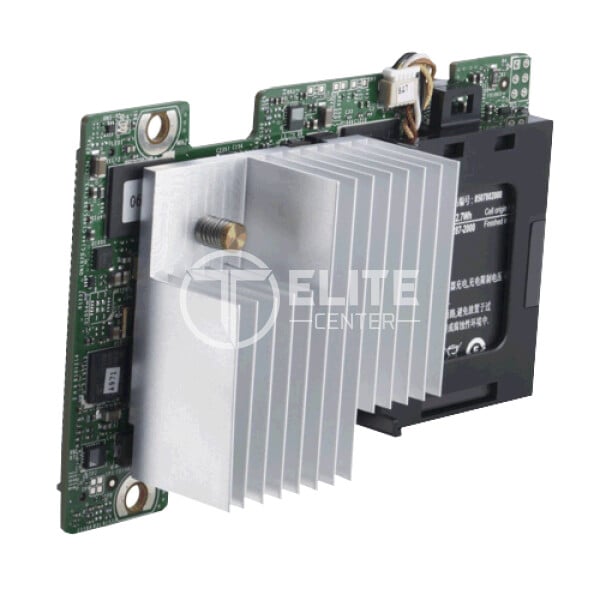

Dell PowerEdge PERC H710P
1GB Non-Volatile (NV) Cache
6Gb/s SAS/SATA PCIe 2.0 x8
Mini Mono RAID Controller
For Dell PowerEdge:
R520 R620 R720 R720XD Servers
Part Number(s)
Dell Part# PCVT5
Note:
Please confirm
Low Profile
or
Full Height
Bracket
In comments box at checkout. Thank you
Especificaciones
| Category | Dell Controller |
| Sub-Category | Controller |
| Generation | PCI-Express |
| Device Type | Serial Attached SCSI |
| Interface Type | PCI Express 2.0 x8 |
| Data Transfer Rate | Up to 6Gb/s per Port |
| Operating Voltage | +3.3v |
| Cache | 1GB Non-Volatile |
| Battery Backup | Yes |
| Connectors | 2 x Internal mini-SAS SFF8088 |
| Max Hard Drives Supported | Up to 32 Drives |
| SAS Controller | LSISAS2008 Dual Core PowerPC ROC |
| RAID Controller | RAID 0 1 5 10 50 60 |
Compatibilidad
- For Dell PowerEdge:
- R520 R620 R720 R720XD Servers
Garantia
Lifetime
Please confirm Low Profile or Full Height Bracket
