Descripcion

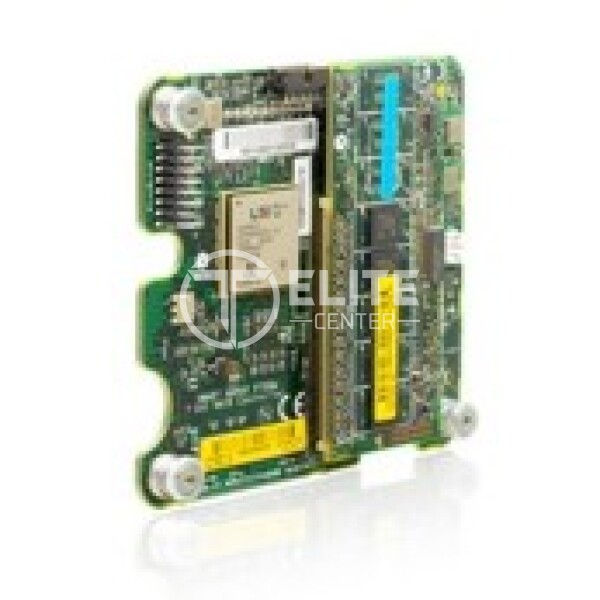

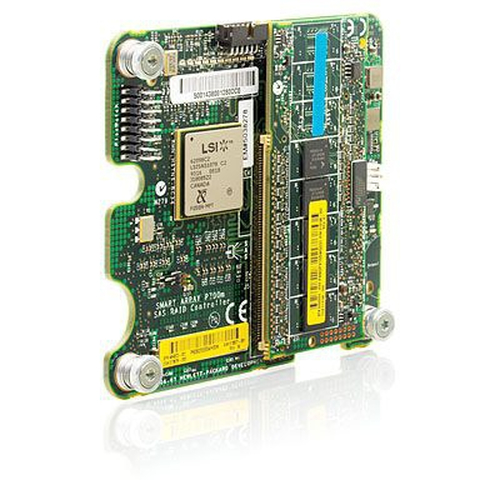

HP Smart Array P700m 512MB Mezzanine Card
for the HP c-Class Blade Systems
Part Number(s)
Option Part# 508226-B21
Spare Part# 510026-001
Especificaciones
| Category | Proliant Controller |
| Sub-Category | PCI-Express |
| Generation | SAS P700M |
| Device Type | Storage Controller (RAID) – Plug-in Card |
| Interface Type | PCI Express x8 – Low Profile |
| Controller Interface Type | Serial ATA-150 / SAS |
| Data Transfer Rate | 300MB/s |
| Buffer Size | 512MB (Installed) / 512MB (Max) |
| Supported Devices | Hard Drive, Disk Array (RAID) |
| Channel Qty | 8 |
| Max Storage Devices Qty | 18 |
| RAID Level | RAID 0 1 5 6 10 |
| Dimensions (WxDxH) | 0.7 in x 6.6 in x 2.8 in |
Compatibilidad
- BL280c G6 G7 BL2x220c G5 BL460c G6 G7 BL465c G5 BL465c G6 G7 BL495c G5 BL495c G6 G7 BL685c G5 BL685c G6 G7 BL860c
Garantia
Lifetime
