Descripcion

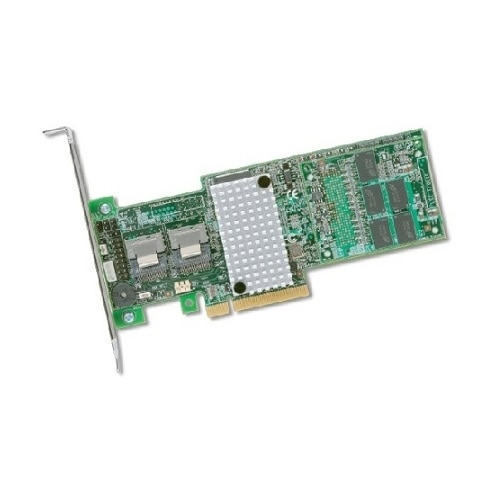

Dell PowerEdge PERC H840
8GB NV (Non-Volatile) Cache
SAS 12Gb/S SATA 6Gb/s
PCIe 3.0 x8 RAID Controller
For Dell PowerEdge:
R440 R540 R640 R650 R740 R740XD R740XD2 R740XD R740XD22 R7415 R7425 R750XA R7515 R7525 R830 R840 R940 R940XA T440 T640 XR12 Servers
For Dell PowerVault:
NX3240
Part Number(s)
Dell Part# 405-AANN
Note:
Please confirm
Low Profile
or
Full Height
Bracket
In comments box at checkout. Thank you
Especificaciones
| Category | Dell Controller |
| Sub-Category | Controller |
| Generation | PCI-Express |
| Device Type | Storage Controller (RAID) – Plug-in Card |
| Interface Type | PCI Express 3.0 x8 |
| Data Transfer Rate | 12Gb/s SAS 6Gb/s SATA |
| Internal/External Connectors | External |
| RAID Level | RAID 0 1 5 6 10 50 60 |
| Cache | 8GB Non-Volatile (NV) |
Compatibilidad
- For Dell PowerEdge:
- R440 R540 R640 R650 R740 R740XD R740xd2 R7415 R7425 R750xa R7515 R7525 R840 R940 R940xa T440 T640 XR12 Servers.
- PowerVault NX3240
Garantia
Lifetime
Please confirm Low Profile or Full Height Bracket
