Descripcion

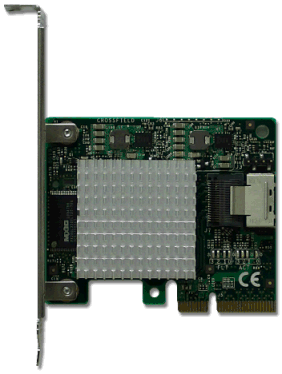

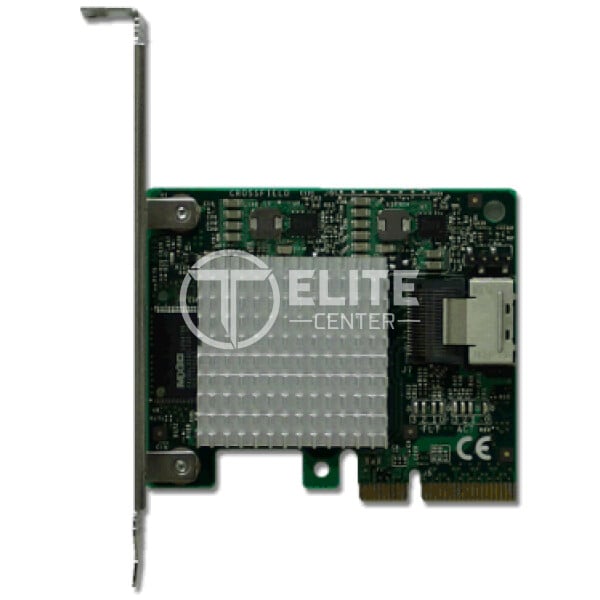

IBM ServeRAID H1110 PCIe SAS/SATA RAID Controller
For IBM System x Servers
Part Number(s)
IBM Part# 81Y4492
Especificaciones
| Category | IBM Option |
| Sub-Category | Controller |
| Generation | SAS/SATA PCIe |
| Controller Type | Serial ATA-300 / SAS 2.0 |
| Interface | SATA 3Gb/s / SAS 6Gb/s |
| Recommended Machine Type | IBM Server Series x |
| Platform | Server |
| Bus Type | PCIe 2.0 x4 |
| Data Transfer Rate | 600MB/s |
| Supported RAID Level | RAID 0 1 10 1E |
| Form Factor | Plug-in Card |
| Connector Location | Internal |
| Connector Type | 36 pin 4i Mini MultiLane SAS (SFF-8087) |
Compatibilidad
- For System x3100 M5 x3250 M5 x3550 M4 x3650 M4 BD
Garantia
Lifetime
