Descripcion

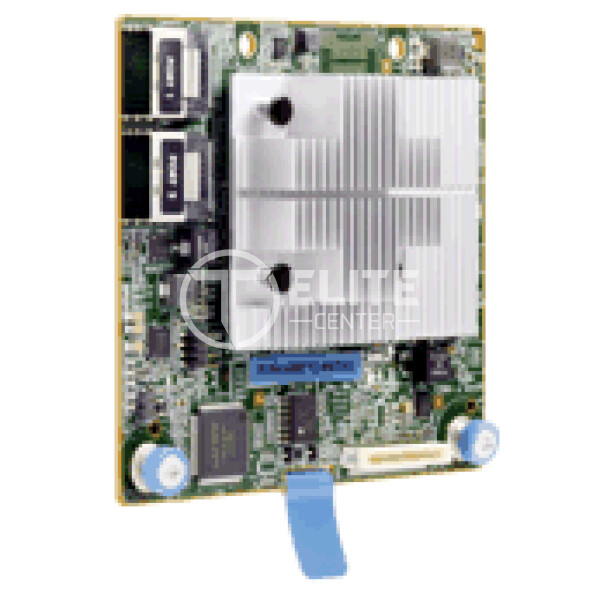

HP Smart Array E208i-a SR G10
8 Internal Lanes/No Cache
12Gb/s SAS Modular Controller
Note:
This controller does not occupy a PCIe expansion slot.
Note:
When GPUs are used in the HP ProLiant DL360 Gen10 the HP Smart Array E208i-a SR Gen10 LH Controller (869079-B21) should be used in place of the HP Smart Array E208i-a SR Gen10 Controller (804326-B21).
Part Number(s)
Option Part# 804326-B21
Spare Part# 836259-001
Assembly Part# 804329-001
Option Part# 869079-B21 (Low profile heatsink)
Spare Part# 871039-001 (Low profile heatsink)
Especificaciones
| Category | Proliant Controller |
| Sub-Category | Smart Array |
| Generation | E208i-a |
| Product Type | Storage Controller (RAID) |
| Interface | PCI Express 3.0 x8 Lane Width |
| Connector Type | 8 Internal SAS lanes |
| Form Factor | Type-a Modular |
| Ports | 8 SAS lanes across 2 x4 Mini SAS HD |
| Cache | No Cache |
| Transfer Rate | 12Gb/s SAS per lane/6Gb/s SATA per lane |
| RAID Level | 0 1 5 10 |
Compatibilidad
- HP Proliant Gen 10 (G10) Series Servers
- HP Proliant ML Series: ML350 (G10)
- HP Proliant DL Series: DL160 (G10) DL180 (G10) DL360 (G10)
- HP Proliant DL Series: DL380 (G10) DL385 (G10) DL560 (G10)
- HP Proliant XL Series: XL450 (G10)
- HP Proliant Gen 10 Plus (G10+) Series Servers
- HP Proliant DL Series: DL20 (G10+) DL325 (G10+) DL360 (G10+) DL365 (G10+)
Garantia
Lifetime
This controller does not occupy a PCIe expansion slot. Note:
