Supported CPU
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports 1st, 2nd and 3rd 4to 5To Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4 |
Chipsets
| Chipset | AMD A320 |
|---|
Memory
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | Support DDR4 3200/ 2933/ 2667/ 2400/ 2133/ 1866 MHz |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
Expansion Slots
| PCI Express 3.0 x16 | 1 x PCIe 3.0 x16 slot: 1st, 2nd and 3rd Gen AMD Ryzen: Supports x16 speed Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics: Supports x8 speed AMD Athlon with Radeon Vega Graphics: Supports x4 speed |
|---|---|
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x1 | 1 x PCIe 2.0 x1 slot |
Storage Devices
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/10 |
Onboard Video
| Onboard Video Chipset | Supported only by CPU with integrated graphic:
1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz Only support when using AMD Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Processors |
|---|
Onboard Audio
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
Onboard LAN
| LAN Chipset | Realtek 8111H |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
Rear Panel Ports

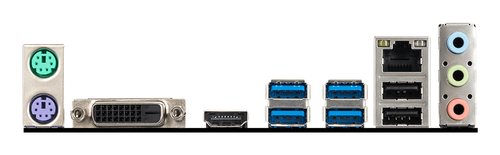

| Back I/O Ports | 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 2 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.2 Gen 1 |
|---|---|
| USB 3.0 | 4 x USB 3.0 |
